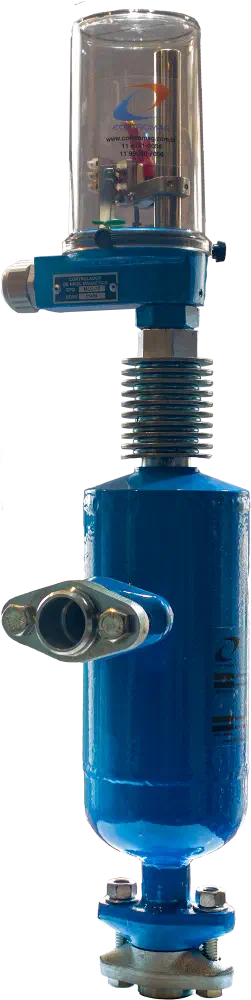

MLC-2000 - Oval Flange Level Switch
The MLC-2000 level switch provides electrical switching in response to refrigerant liquid level variation in industrial refrigeration equipment.
Applications
The MLC-2000 is used in separator vessels, chillers, intercoolers, and other liquid level monitoring applications. The product page source notes use mainly with ammonia, R-22, R-507, R-134A, and other refrigerants.
Available Versions
- With ice-breaker, with 1 or 2 microcontrollers.
- Without ice-breaker, with 1 or 2 microcontrollers.
Documentation
Download the catalog for model details and contact Contromag to confirm compatibility for your refrigerant, vessel, and operating conditions.
Brazilian Manufacturing
Quality Assurance
Technical Support
Technical Information
Catalog-backed product facts for engineering, procurement, and application review.
Product Overview
- Model
- MLC-2000
- Category
- Level switch
- Industries
- Industrial refrigeration
Applications and Media
- Typical applications
- Separator vessels, Chillers, Intercoolers, Liquid-level monitoring applications
- Compatible media
- Ammonia, R-22, R-507, R-134A, Other refrigerants
- Customization options
- One switching assembly model, Two switching assemblies model, With ice-breaker for -40 deg C service, Without ice-breaker for -20 deg C service
Technical Characteristics
- Operation type
- Magnetic float level switch
- Pressure range
- Working pressure: 31 bar, 3.1 MPa maximum
- Temperature range
- Ambient temperature: -45 deg C to 65 deg C; Model mlc 2000 1: -20 deg C to 80 deg C refrigerant temperature; Model mlc 2000 1bk: -40 deg C to 80 deg C refrigerant temperature; Model mlc 2000 2: -20 deg C to 80 deg C refrigerant temperature; Model mlc 2000 2bk: -40 deg C to 80 deg C refrigerant temperature
- Connection types
- Oval flange 17, 3/4 inch NPT electrical connection
Construction and Options
- Materials
- Carbon steel body, Stainless steel wetted parts, Transparent acrylic cap
- Electrical
- Voltage current: 240 VAC at 10 A
Documentation and Quote Context
- Documents
- Catalog revision
- 12-2020
- Quote process
- Contact Contromag to confirm refrigerant, vessel, and mounting requirements.
