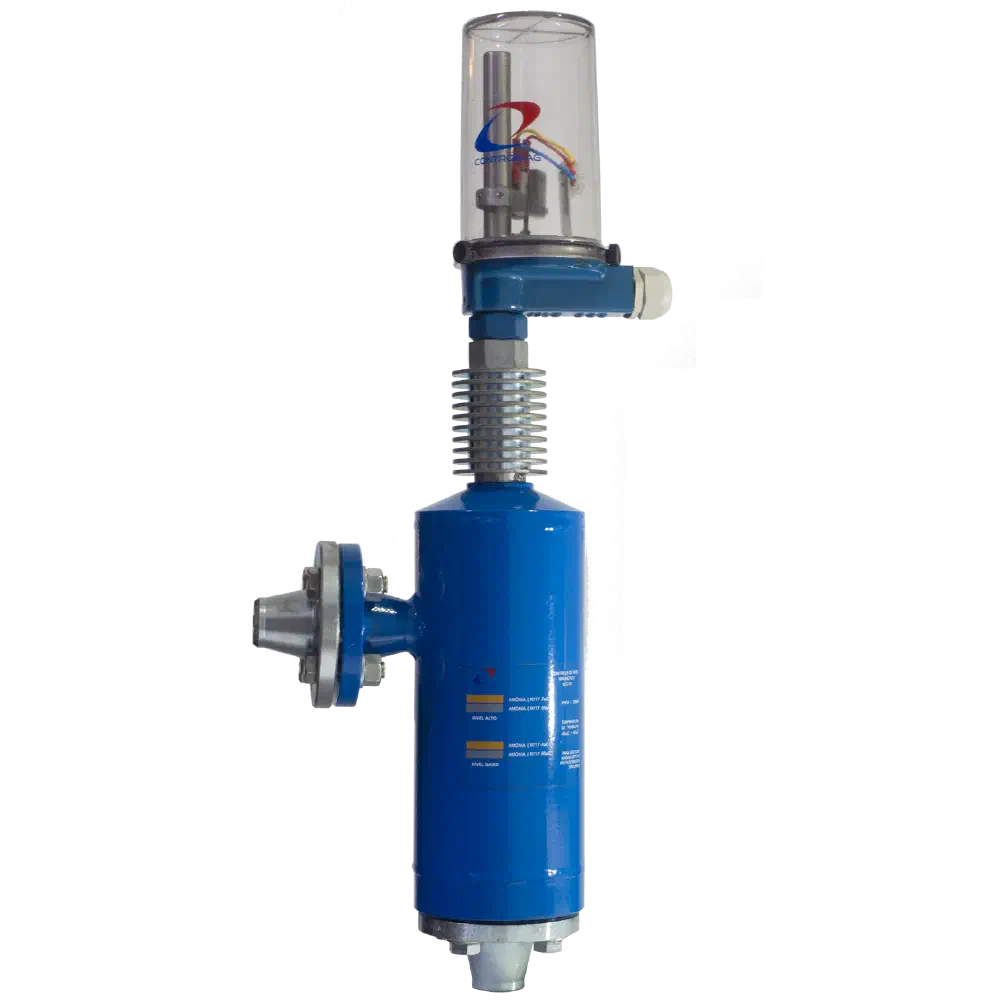

MLC-70 - Float Level Switch
The MLC-70 float level switch sends an electrical signal in response to refrigerant liquid level changes.
Applications
Typical applications include separator vessels, chillers, intercoolers, and other industrial refrigeration equipment that require liquid level control or monitoring.
Technical Characteristics
- Compact dimensions.
- Simple operation.
- Operating unit components and wetted parts in type 316 stainless steel.
- Available with ice-breaker and without ice-breaker versions.
Request a Quote
Contact Contromag with the vessel type, refrigerant, mounting requirement, and control function needed for your installation.
Brazilian Manufacturing
Quality Assurance
Technical Support
Technical Information
Catalog-backed product facts for engineering, procurement, and application review.
Product Overview
- Model
- MLC-70
- Category
- Float level switch
- Industries
- Industrial refrigeration
Applications and Media
- Typical applications
- Separator vessels, Chillers, Intercoolers, Flooded evaporators, Transfer vessels, High-pressure receivers, Controlled-pressure receivers, Suction accumulators, Refrigerant-liquid recirculation accumulators
- Compatible media
- Refrigerant liquid, Ammonia, R-22, R-507, R-134A, Other commonly used refrigerants
- Customization options
- With ice-breaker, Without ice-breaker
Technical Characteristics
- Operation type
- Magnetic float level switch with external SPDT microswitch
- Pressure range
- Working pressure: 31 bar, 3 MPa, 450 psig
- Temperature range
- Ambient temperature: -45 deg C to 65 deg C; Operating temperature range: -45 deg C to 65 deg C; Refrigerant working temperature: -40 deg C to 80 deg C
- Mounting orientation
- Vertical mounting
- Installation constraints
- Must be mounted vertically, For ammonia applications, avoid level interference with the lowest equilibrium level, Service valves at MLC-70 connections should be used with stems in the horizontal direction, When several MLC units are mounted on the same control column, use manual service balance valves only at the top and bottom of the column
Construction and Options
- Materials
- Type 316 stainless steel operating unit components and wetted parts
- Electrical
- Switch: SPDT microswitch
- Features
- Weatherproof enclosure, Improved and precise magnetic switch mechanism, Standardized interchangeable components between MLC-70 versions, Made in Brazil, Weight 10 kg
- Functions
- Energize solenoid valves, Energize relays, Control refrigerant liquid pumps, Shut down compressor in specified cases, Activate safety alarms, Activate lamps for high or low liquid level indication
Documentation and Quote Context
- Documents
- Catalog revision
- 10-2019
- Quote process
- Contact Contromag with vessel type, refrigerant, mounting requirement, and control function.
