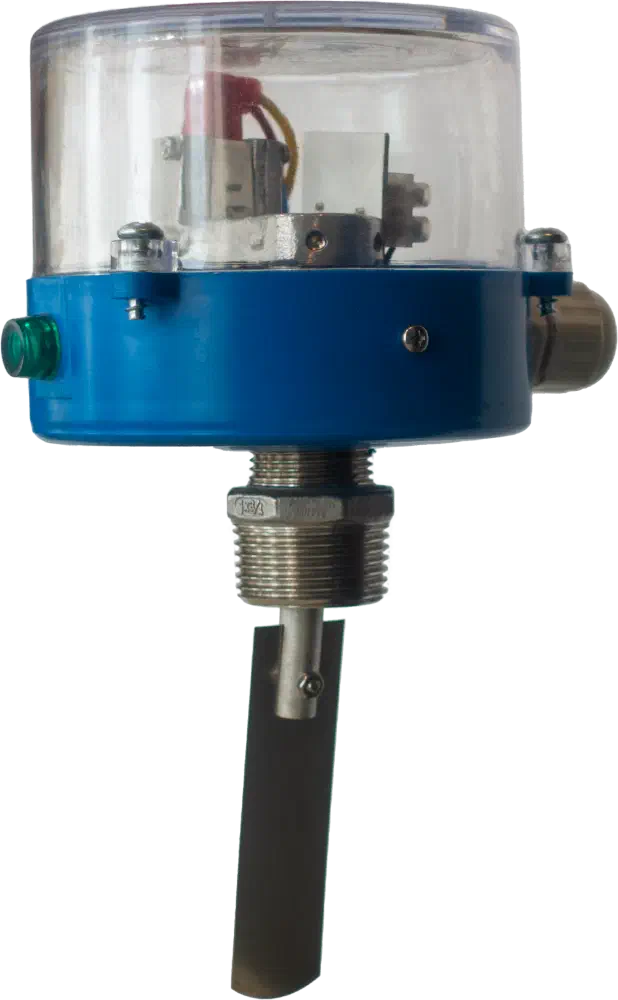

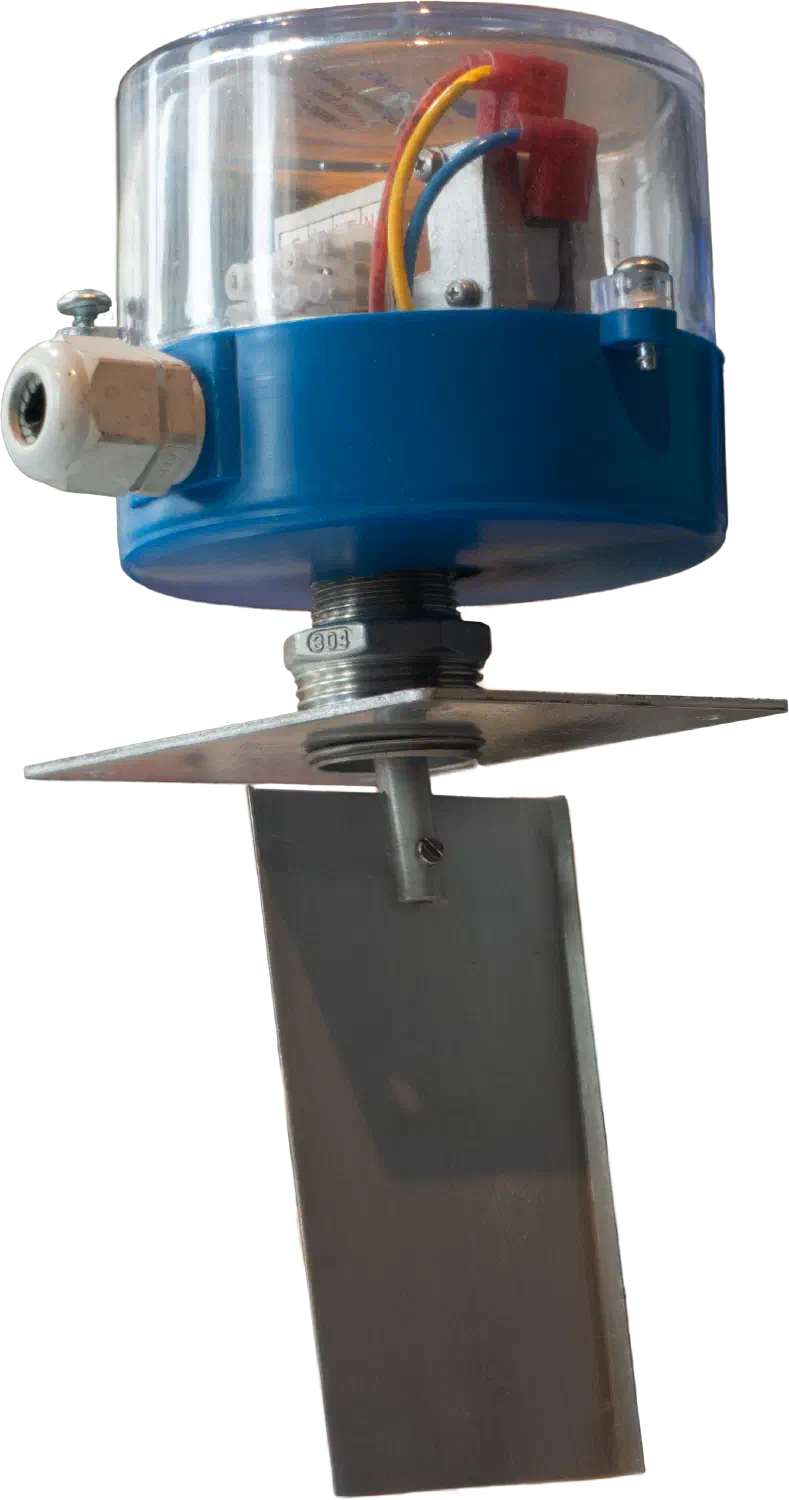

FSC-125 - Stainless Steel Flow Switch
The FSC-125 is a paddle-type flow switch with robust IP65 construction for liquid lines.
Applications
The FSC-125 is used to monitor flow in liquid lines, including water service, where stainless steel 304 compatibility is appropriate for the application.
Technical Characteristics
- Switches one circuit closed and another open when flow rises above or falls below the adjusted rate.
- Stainless steel 304 compatibility noted for suitable liquid services.

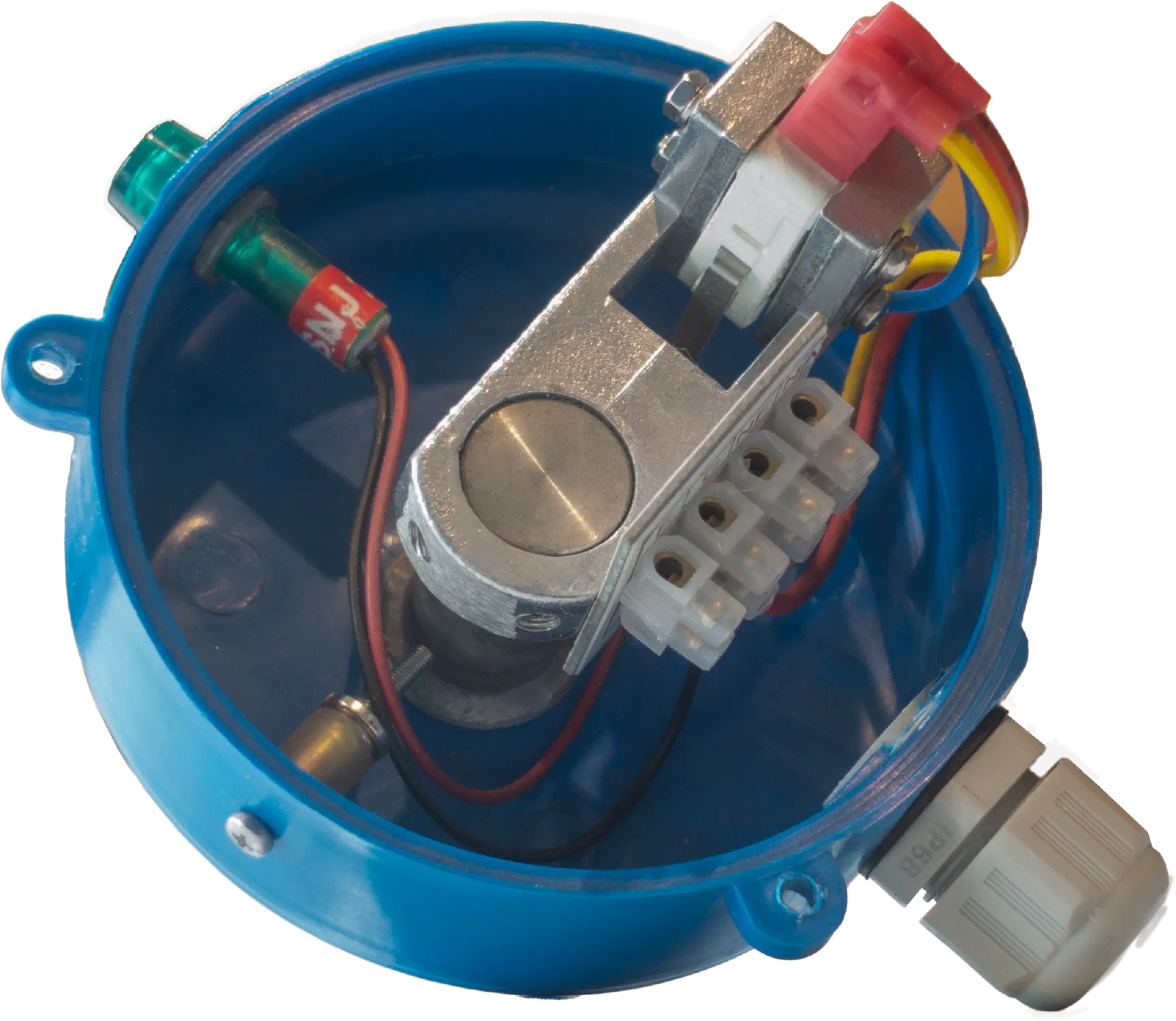

- Transparent cover for visual monitoring.
- Designed for outdoor use with protection against rain and water jets.
Application Notes
The FSC-125 should not be used with liquids below 0 degrees C or in hazardous environments. For critical installations, include independent safety devices or supervision systems.
Documentation
Download the catalog and photos for additional configuration and installation information.
Brazilian Manufacturing
Quality Assurance
Technical Support
Technical Information
Catalog-backed product facts for engineering, procurement, and application review.
Product Overview
- Model
- FSC-125
- Category
- Paddle flow switch
- Industries
- Industrial refrigeration, Process applications
Applications and Media
- Typical applications
- Liquid flow lines, Outdoor liquid-flow monitoring where IP65 construction is required, Process applications requiring flow monitoring
- Compatible media
- Water, Liquids, Liquids with high salt or chlorine content
Technical Characteristics
- Operation type
- Adjustable-sensitivity paddle flow switch
- Pressure range
- Operating: 25 bar; Test: 30 bar
- Temperature range
- Maximum fluid temperature: 100 deg C; Minimum liquid temperature note: Do not use in lines carrying liquids below 0 deg C
- Connection types
- Process connection 1 inch BSPT, Electrical connection 1/2 inch NPT
- Mounting orientation
- Horizontal piping, Vertical piping with mandatory upward flow
- Installation constraints
- In vertical mounting, flow must be upward, Provide 5 pipe diameters of straight run upstream and downstream, Not appropriate for hazardous environments, Electrical installation must be performed by qualified personnel according to applicable standards and rules
Construction and Options
- Materials
- Stainless steel 304 compatible wetted construction, Transparent cover
- Electrical
- Contact capacity: Ac 125v: 10 A resistive, 10 A inductive; Ac 250v: 5 A resistive, 5 A inductive; Dc 115v: 0.6 A; Dc 230v: 0.3 A; Dielectric test: 1500 VAC for one minute; Insulation resistance: Above 100 ohm at 500 VDC; Mechanical life: 1000000 cycles; Terminal colors: Common: Black; Neutral: Red; Normally closed: Blue; Normally open: Yellow
- Flow adjustment
- Adjustable flow sensitivity, Turn sensor clockwise to increase actuation force, Turn sensor counterclockwise to decrease actuation force
Documentation and Quote Context
- Documents
- Catalog revision
- 12-2023
- Quote process
- Contact Contromag to confirm application, line conditions, and quote details.
