FSC-25 - Aluminum Flow Switch

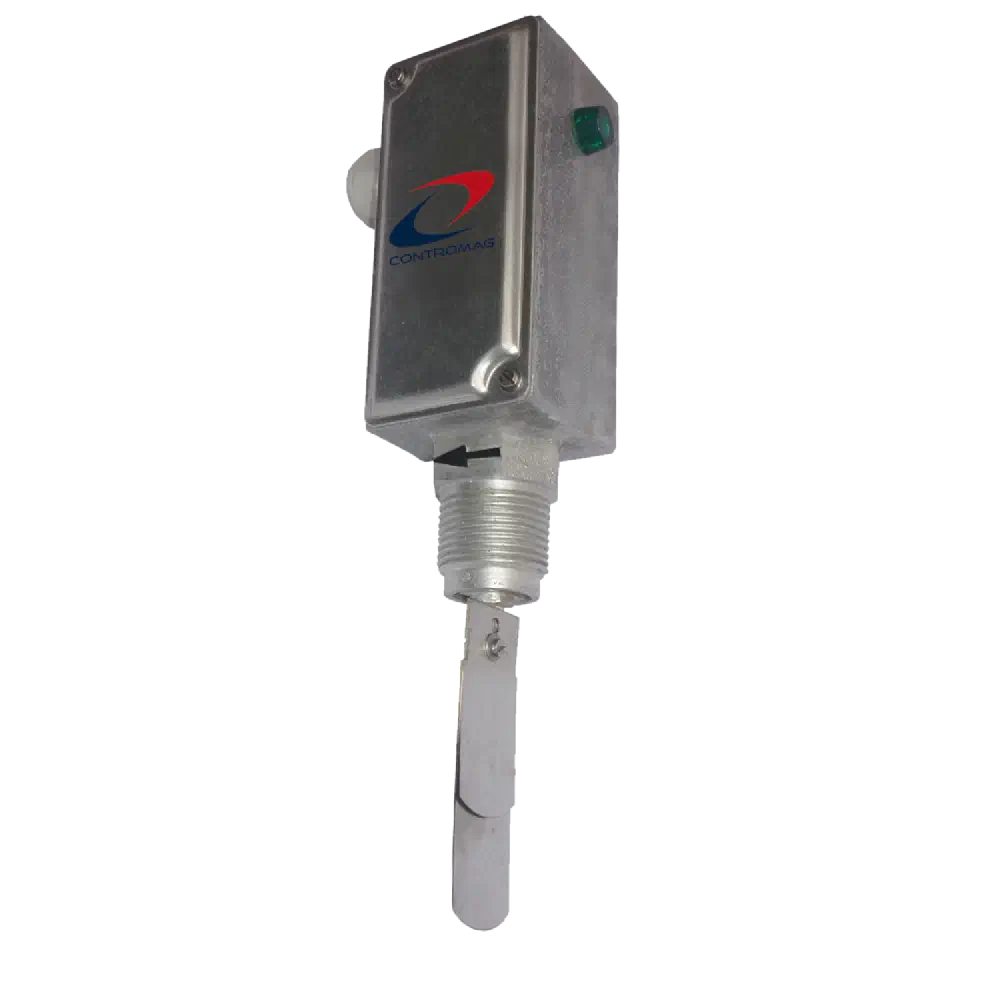

The FSC-25 paddle flow switch monitors liquid flow in piping for water systems, heating systems, air conditioning, and industrial or commercial processing installations.
Applications
The FSC-25 can be applied as an automatic control device or a safety device for liquid flow monitoring.
Technical Characteristics
- Paddle-type flow detection.
- Reversible SPDT electrical contact.
- Can be wired to start or stop a motor when a flow or no-flow condition exists.
- Can be used to activate an alarm when flow is insufficient.
Documentation
Download the technical catalog for installation and wiring details.
Brazilian Manufacturing
Quality Assurance
Technical Support
Technical Information
Catalog-backed product facts for engineering, procurement, and application review.
Product Overview
- Model
- FSC-25
- Category
- Paddle flow switch
- Industries
- Industrial refrigeration, HVAC, Process applications
Applications and Media
- Typical applications
- Water systems, Heating systems, Air conditioning systems, Commercial and industrial processing applications, Fire-extinguisher systems, Automatic control and safety-device applications for liquid flow
- Compatible media
- Water, Liquids
- Customization options
- Optional green LED indication, Optional DN 6 inch paddle
Technical Characteristics
- Operation type
- Paddle flow switch with reversible SPDT contact
- Pressure range
- Maximum working pressure: 20 bar at 80 deg C
- Temperature range
- Maximum temperature: 80 deg C
- Connection types
- 1 inch BSPT male process connection, 1/2 inch NPT electrical connection
- Mounting orientation
- Horizontal pipe section, Vertical pipe section
- Installation constraints
- Install in a tee in horizontal or vertical piping, Vertical installation must have downward flow, Provide at least 5 pipe diameters of straight run upstream and downstream, Mount with paddle in proper position and stamped arrow in direction of flow, Electrical installation must be performed by qualified personnel according to applicable standards and rules
Construction and Options
- Materials
- Cast aluminum body integral with electrical enclosure, Cast aluminum electrical enclosure, Hardened stainless steel type 301 paddle, Wetted parts in aluminum and stainless steel
- Electrical
- Contact type: SPDT single-pole double-throw microswitch; Optional led: Green light indicating flow, Green light indicating no-flow
- Maintenance
- Paddles and cover can be replaced in the field, Other field repairs should not be performed
- Included paddles
- Three paddles included with each FSC-25, DN 6 inch paddle is optional
Documentation and Quote Context
- Documents
- Catalog revision
- 08-2016
- Quote process
- Contact Contromag to confirm line conditions, application, and quote details.
