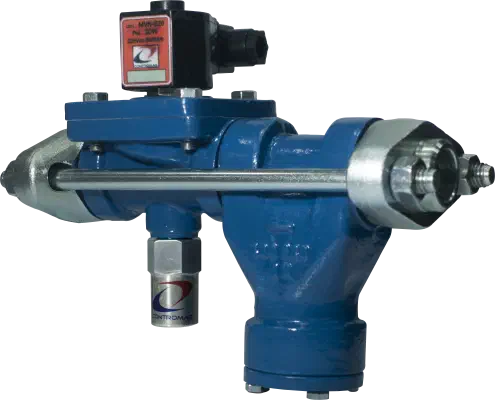

MVK and KF - Solenoid Valve and Strainer Assembly
The KF + MVK assembly combines filtration and flow control in a compact configuration for industrial and commercial refrigeration systems.
KF Mesh Strainer
The KF mesh strainer uses a washable element and is indicated for lines with fluorinated and non-fluorinated refrigerants, ammonia, oil, gas, water, and brine when confirmed for the project conditions. It can be installed independently or directly coupled to the MVK solenoid valve.
MVK Solenoid Valve
The MVK solenoid valve is direct acting or servo operated for liquid, suction, and hot gas lines with ammonia or fluorinated and non-fluorinated refrigerants. The design is intended to open and remain open with a minimum pressure drop of 0.15 kgf/cm2.
Assembly Benefits
Used together, the KF strainer and MVK valve provide a compact package that combines system protection, flow control, and practical installation.
Documentation
Download the catalogs for model selection and contact Contromag to confirm the valve, strainer, and connection requirements.
Technical Information
Catalog-backed product facts for engineering, procurement, and application review.
Product Overview
- Model
- MVK and KF
- Category
- Solenoid valve and strainer assembly
- Industries
- Industrial refrigeration, Commercial refrigeration
Applications and Media
- Typical applications
- Industrial refrigeration fluid control, Industrial refrigeration filtration, Commercial refrigeration fluid control, Compact combined solenoid valve and strainer installation
- Compatible media
- Ammonia, Fluorinated refrigerants, Non-fluorinated refrigerants, Oil, Gas, Water, Brine, Air, Steam, Solvents, Fuels
- Customization options
- Compact assembled configuration, Manual opening actuator kit for MVK, Seal kit, Mounting kit, Mesh 60 filter element on request
Technical Characteristics
- Operation type
- Integrated normally closed solenoid valve and basket mesh strainer assembly
- Pressure range
- Differential pressure note: Solenoid valve catalog tables list differential pressure by model and coil voltage; confirm the specific row for the selected model.; Solenoid valve maximum pressure: Mvk 20 25: 22 kgf/cm2; Strainer maximum working pressure: 30 kgf/cm2
- Temperature range
- Solenoid valve: Maximum fluid temperature: 105 deg C; Minimum fluid temperature: -40 deg C; Strainer: Maximum fluid temperature: 200 deg C; Minimum fluid temperature: -40 deg C
- Connection types
- WN butt-weld connection, RN NPT female threaded connection for MVK where cataloged, RB BSP female threaded connection for MVK where cataloged
- Mounting orientation
- Solenoid valve preferably horizontal with coil facing upward
- Installation constraints
- Confirm model compatibility before assembling MVK and KF components, Strainer can be installed independently or as an assembly with MVK solenoid valves
Construction and Options
- Materials
- Solenoid valve: Nodular cast iron body GGG-40, Stainless steel internal parts, Chloroprene neoprene seals, PTFE diaphragm; Strainer: Stainless steel basket filter element, Nodular cast iron body GGG-40
- Electrical
- Coil voltage options: 110 VAC, 220 VAC, 24 VDC, 12 VDC; Power: Ac 110v 220v: 15 W; Dc 24v 12v: 22 W; Protection: IP65
- Filtration
- Optional: Mesh 60 on request; Standard: Mesh 100
Documentation and Quote Context
- Documents
- Catalog revision
- Kf 15: 27-09-2023; Kf 25: 00; Mvk 10 15: 27-09-2023; Mvk 20 25: 27-11-2022
- Quote process
- Contact Contromag to confirm line service, refrigerant, model, coil voltage, filter mesh, and assembly requirements.
