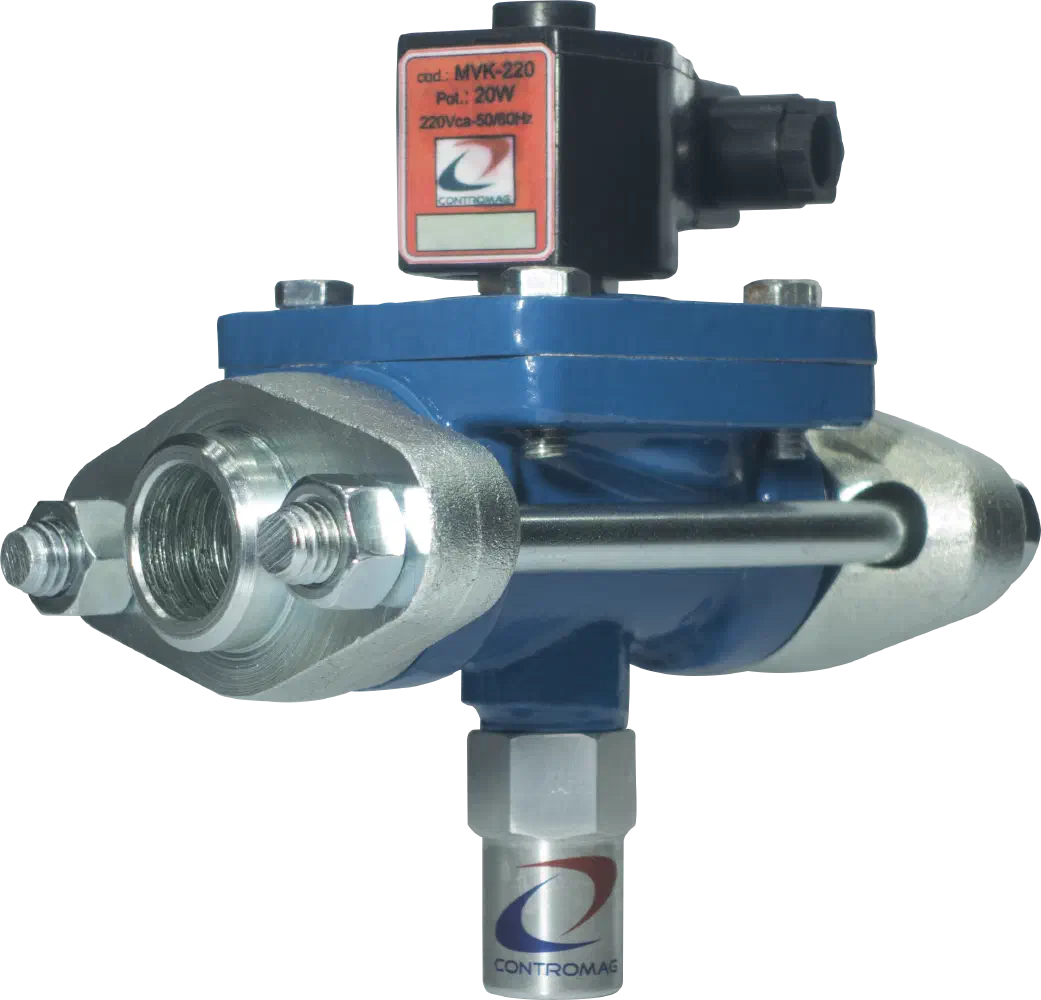

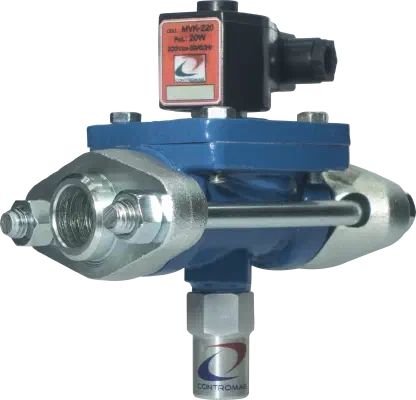

MVK - Solenoid Valve
The MVK is a direct-acting or servo-operated solenoid valve for liquid, suction, and hot gas lines with ammonia or fluorinated and non-fluorinated refrigerants.
Technical Characteristics
- Designed to open and remain open with a pressure drop of 0.15 kgf/cm2.
- Supplied complete.
- MVK 20 and MVK 25 versions include a manual actuator in all versions.
- Can be mounted independently or together with a KF strainer.
Applications
Use the MVK valve for industrial refrigeration fluid control where the cataloged valve configuration matches the refrigerant, line type, connection, and operating conditions.
Documentation
Download the catalog for model details and contact Contromag for valve selection support.
Brazilian Manufacturing
Quality Assurance
Technical Support
Technical Information
Catalog-backed product facts for engineering, procurement, and application review.
Product Overview
- Model
- MVK
- Category
- Solenoid valve
- Industries
- Industrial refrigeration, Commercial refrigeration
Applications and Media
- Typical applications
- Industrial refrigeration liquid lines, Industrial refrigeration suction lines, Industrial refrigeration hot gas lines, Commercial refrigeration installations
- Compatible media
- Ammonia, Fluorinated refrigerants, Non-fluorinated refrigerants
- Customization options
- Manual opening actuator kit, Seal kit, Mounting kit, Assembly with KF strainer
Technical Characteristics
- Operation type
- Two-way normally closed solenoid valve
- Pressure range
- Differential pressure note: Catalog tables list differential pressure by model and coil voltage; confirm the specific row for the selected model.; Maximum pressure: Mvk 20 25: 22 kgf/cm2
- Temperature range
- Maximum fluid temperature: 105 deg C; Minimum fluid temperature: -40 deg C
- Connection types
- WN butt-weld connection, RN NPT female threaded connection, RB BSP female threaded connection
- Mounting orientation
- Prefer horizontal mounting with coil facing upward
- Installation constraints
- Prefer horizontal mounting with coil facing upward, Can be supplied mounted with KF-25 strainer
Construction and Options
- Materials
- Nodular cast iron body GGG-40, Stainless steel internal parts, Chloroprene neoprene seals, PTFE diaphragm
- Electrical
- Coil voltage options: 110 VAC, 220 VAC, 24 VDC, 12 VDC; Power: Ac 110v 220v: 15 W; Dc 24v 12v: 22 W; Protection: IP65
- Selection notes
- WN means butt-weld connection, RN means NPT female threaded connection, RB means BSP female threaded connection, Hot-gas capacity notes depend on hot-gas and condensing temperatures in each catalog table
Documentation and Quote Context
- Catalog revision
- Mvk 10 15: 27-09-2023; Mvk 20 25: 27-11-2022
- Quote process
- Contact Contromag to confirm line service, refrigerant, model, coil voltage, and connection requirements.
