MLC-80 APX - Explosion-Proof Level Switch

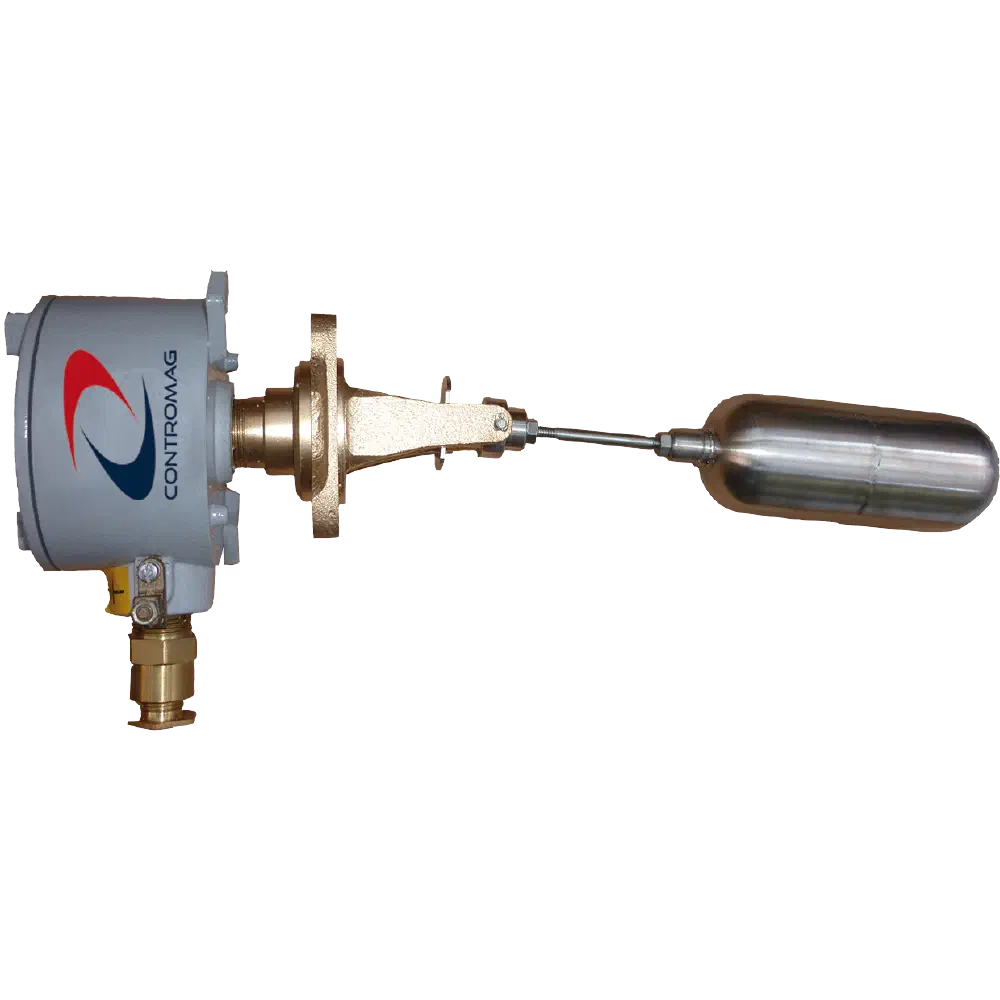

The MLC-80 APX level controller is the explosion-proof version of the MLC-80 line. It is supplied with an SPDT microswitch actuated by a magnetic field and mounted in an explosion-proof, weatherproof aluminum enclosure.
Applications
The MLC-80 APX is used for liquid level detection in marine tanks and process vessels where the electrical enclosure requirements call for the APX version.
Technical Characteristics
- Side-mount or top-mount versions.
- Available with different stem lengths on request.
- Can be supplied coupled to an operation test valve when requested.
- Standard flanged connection, 92 x 92.
- ASME, DIN, and JIS configurations can be requested when applicable to the project.
Materials and Construction
The product is built with naval bronze, aluminum, and type 316 stainless steel components according to the cataloged configuration.
Documentation
Download the catalog for dimensional and ordering details, or contact Contromag for configuration review.
Brazilian Manufacturing
Quality Assurance
Technical Support
Technical Information
Catalog-backed product facts for engineering, procurement, and application review.
Product Overview
- Model
- MLC-80 APX
- Category
- Explosion-proof level switch
- Industries
- Marine
Applications and Media
- Typical applications
- Marine level control, Critical marine areas requiring explosion-proof construction, Low-level alarm for lubricating and fuel oils, Pump operation in process control tanks, Level alarms in condensation tanks, Level-control pumps in storage tanks
- Customization options
- Optional test device MLC-80-DT, Different insertion lengths, Side mounting, Top mounting
Technical Characteristics
- Operation type
- Explosion-proof magnetic level switch with dry-side microswitch and wet-side float
- Pressure range
- Operating pressure: See catalog table
- Temperature range
- Operating temperature: 0 deg C to 130 deg C
- Connection types
- Flanged connection 92x92, 3/4 inch NPT electrical connection
- Mounting orientation
- Side mounting, Top mounting
- Installation constraints
- Designed for side and top mounting directly on a tank or external chamber, Choose a position with reduced turbulence from agitators or fluid feed points, Position so the float can move freely through its full travel without touching vessel walls, Verify operating conditions against MLC-80 specifications
Construction and Options
- Materials
- Housing in aluminum, Body in naval bronze, Float in type 316 stainless steel
- Electrical
- Switch: Microswitch; Table note: See catalog table for voltage range and resistive or inductive current limits
- Features
- Explosion-proof model, Industrial robustness, Optional test device, Reduced dimensions for small tanks, Simple construction, High reliability, Easy installation and maintenance
Documentation and Quote Context
- Documents
- Catalog revision
- 08-2016
- Quote process
- Contact Contromag to confirm tank arrangement, mounting, connection, and area requirements.
