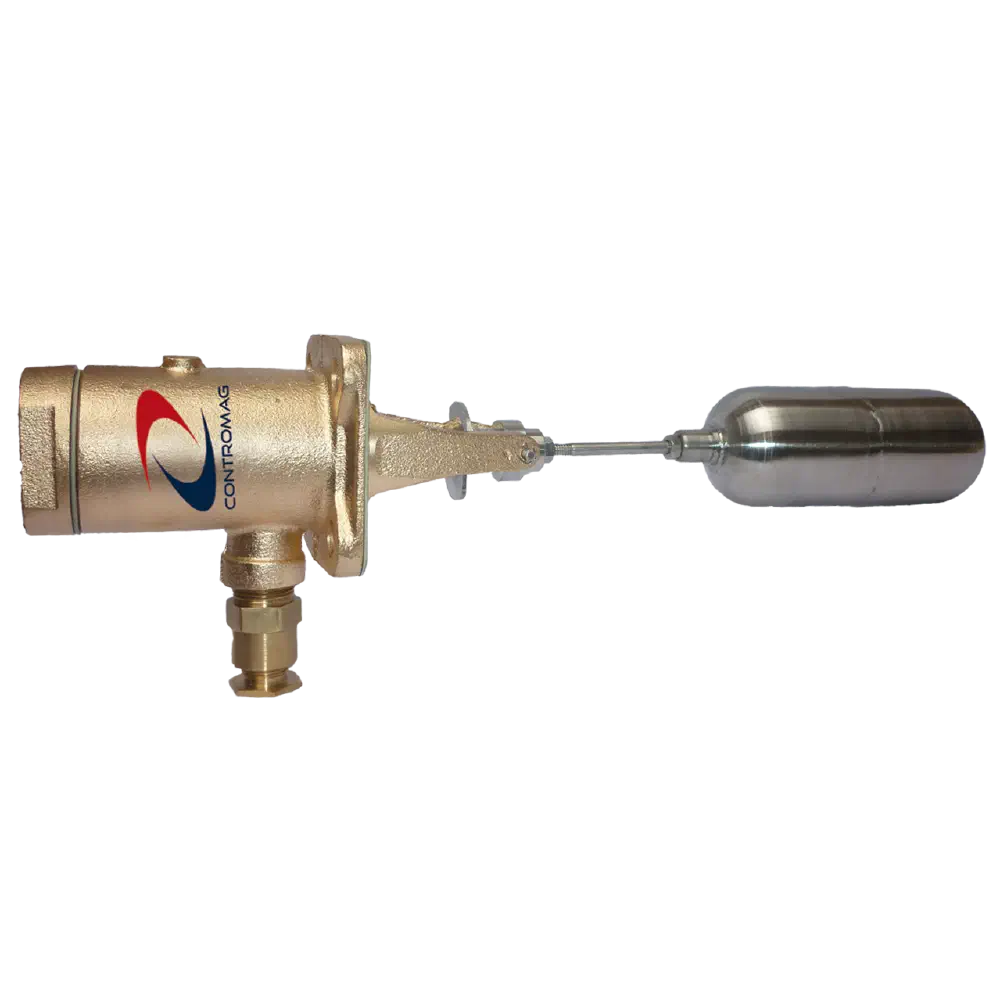

MLC-80 - Side-Mounted Level Switch
The MLC-80 level controller detects liquid levels in pressurized or atmospheric tanks. It uses an SPDT microswitch actuated by a magnetic field and mounted in a threaded-cover, weatherproof electrical enclosure.
Applications
The MLC-80 is used for reliable liquid level monitoring in marine tanks and similar vessel applications.
Technical Characteristics
- Side-mount or top-mount configuration.
- Different stem lengths available according to project requirements.
- Optional coupling to an operation test valve when requested.
- Standard flanged connection, 92 x 92.
- ASME, DIN, and JIS configurations can be requested when applicable.
Materials and Construction
The MLC-80 is built with naval bronze and type 316 stainless steel for durability in demanding service conditions.
Request a Quote
Contact Contromag with the tank arrangement, mounting requirement, and desired connection details for configuration support.
Brazilian Manufacturing
Quality Assurance
Technical Support
Technical Information
Catalog-backed product facts for engineering, procurement, and application review.
Product Overview
- Model
- MLC-80
- Category
- Level switch
- Industries
- Marine
Applications and Media
- Typical applications
- Marine tanks, Marine level control, Low-level alarm for lubricating and fuel oils, Pump operation in process control tanks, Level alarms in condensation tanks, Level-control pumps in storage tanks
- Customization options
- Optional test device MLC-80-DT, Side mounting, Top mounting
Technical Characteristics
- Operation type
- Magnetic level switch with dry-side microswitch and wet-side float
- Pressure range
- Operating pressure: See catalog table
- Temperature range
- Operating temperature: 0 deg C to 130 deg C
- Connection types
- Flanged connection 92x92, 3/4 inch NPT electrical connection
- Mounting orientation
- Side mounting, Top mounting
- Installation constraints
- Designed for side and top mounting directly on a tank or external chamber, Choose a position with reduced turbulence from agitators or fluid feed points, Position so the float can move freely through its full travel without touching vessel walls, Verify operating conditions against MLC-80 specifications
Construction and Options
- Materials
- Body and housing in naval bronze, Float in type 316 stainless steel
- Electrical
- Switch: Microswitch; Table note: See catalog table for voltage range and resistive or inductive current limits
- Features
- Industrial robustness, Optional test device, Reduced dimensions for small tanks, Simple construction, High reliability, Easy installation and maintenance, Weatherproof model
Documentation and Quote Context
- Documents
- Catalog revision
- 08-2016
- Quote process
- Contact Contromag with tank arrangement, mounting requirement, and connection details.
